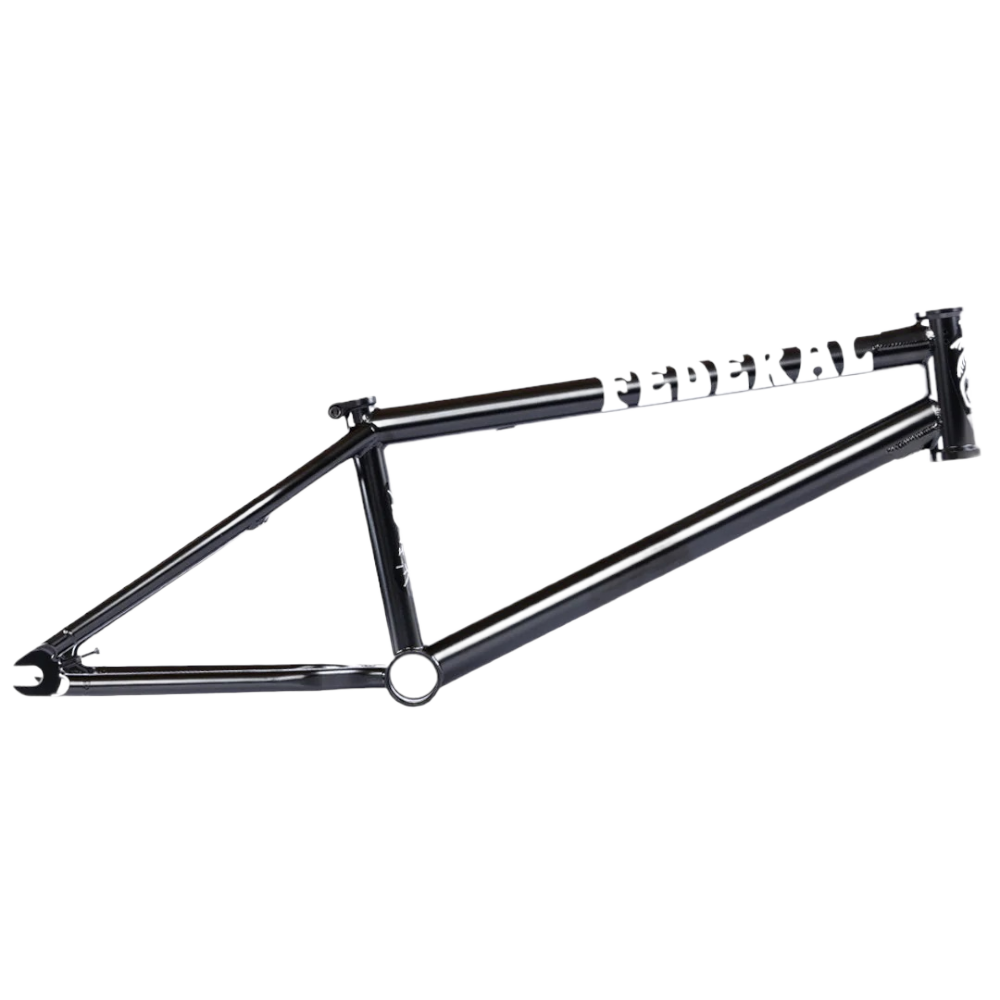

Federal BOYD ICS2 BMX Frame Boyd Hilder 18" black 19"TT

• Wheel size : 18"
• Material : 100% 4130 CrMo, oval down tube, top tube and down tube gussets, tapered tubes, tapered rear triangle tubes, integrated headset, integrated investment cast seat clamp, screwable brake equipment, Mid BB, investment cast rear fork
• Geometry :
  Top tube length (TT): 19"
  Rear triangle length (CS): 13.4" (34.04cm) - 13.8" (35.05cm)
  Head tube angle (HA): 75.2°
  Seat tube angle (SA): 71°
  Bottom bracket height: 11.7" (29.72cm)
  Frame height (SO): 9" (22.86cm)

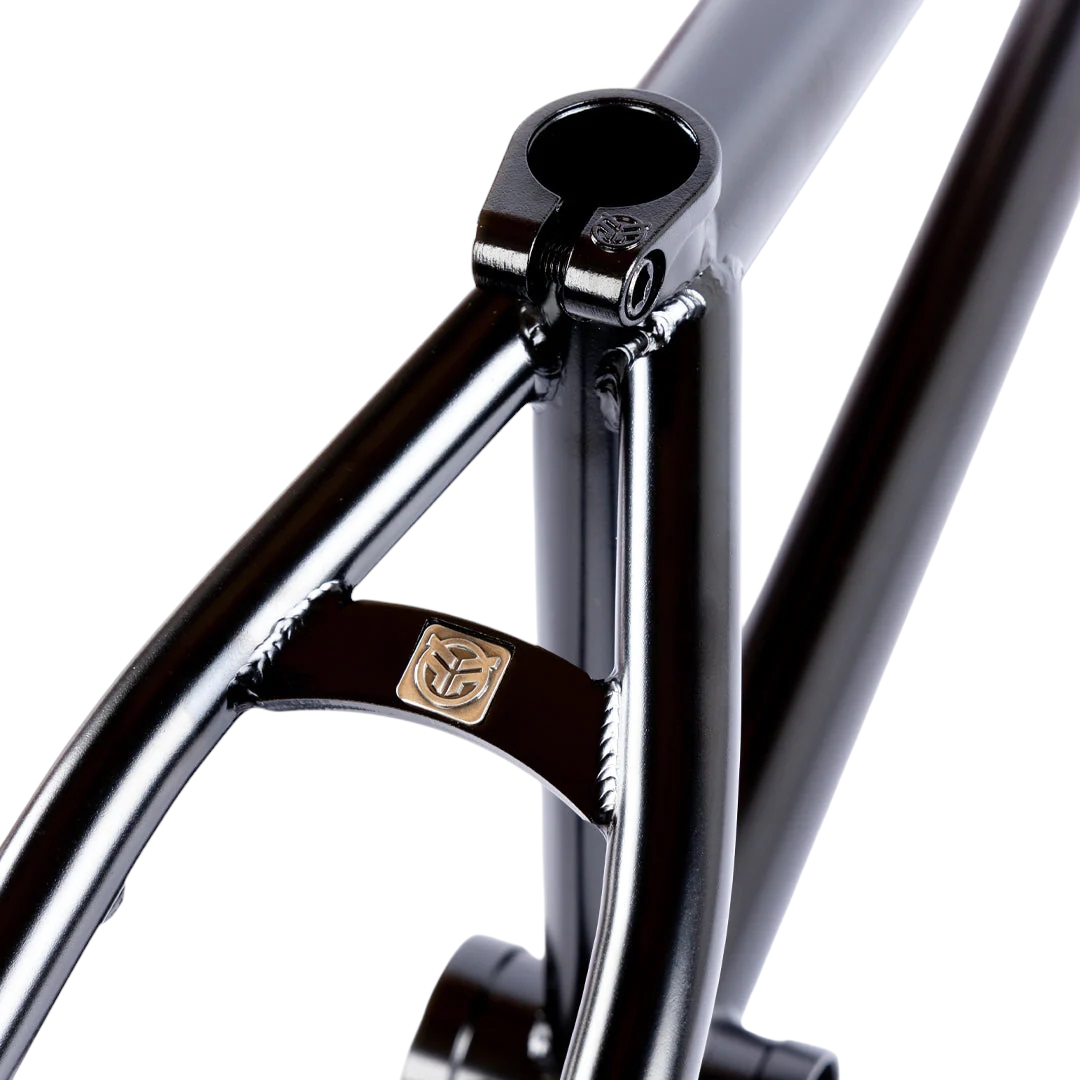

• Seat clamp : integrated Investment Cast (investment casting)
• Seatpost diameter : 25.4mm
• Bottom bracket : Mid BB
• Dropouts : Investment Cast, 14mm axle mount
• Chain tensioner : integrated
• Brake type : U-Brake
• Brake base : with (screwable, M8)
• Brake base included : No
• Rotor compatible : Yes
• Features : Boyd Hilder signature frame, wide rear triangle for thick 2.4" tires, novel design and investment cast rear fork


Scope of delivery:

1 frame
