Federal Jarvis V2 BMX Frame Joe Jarvis

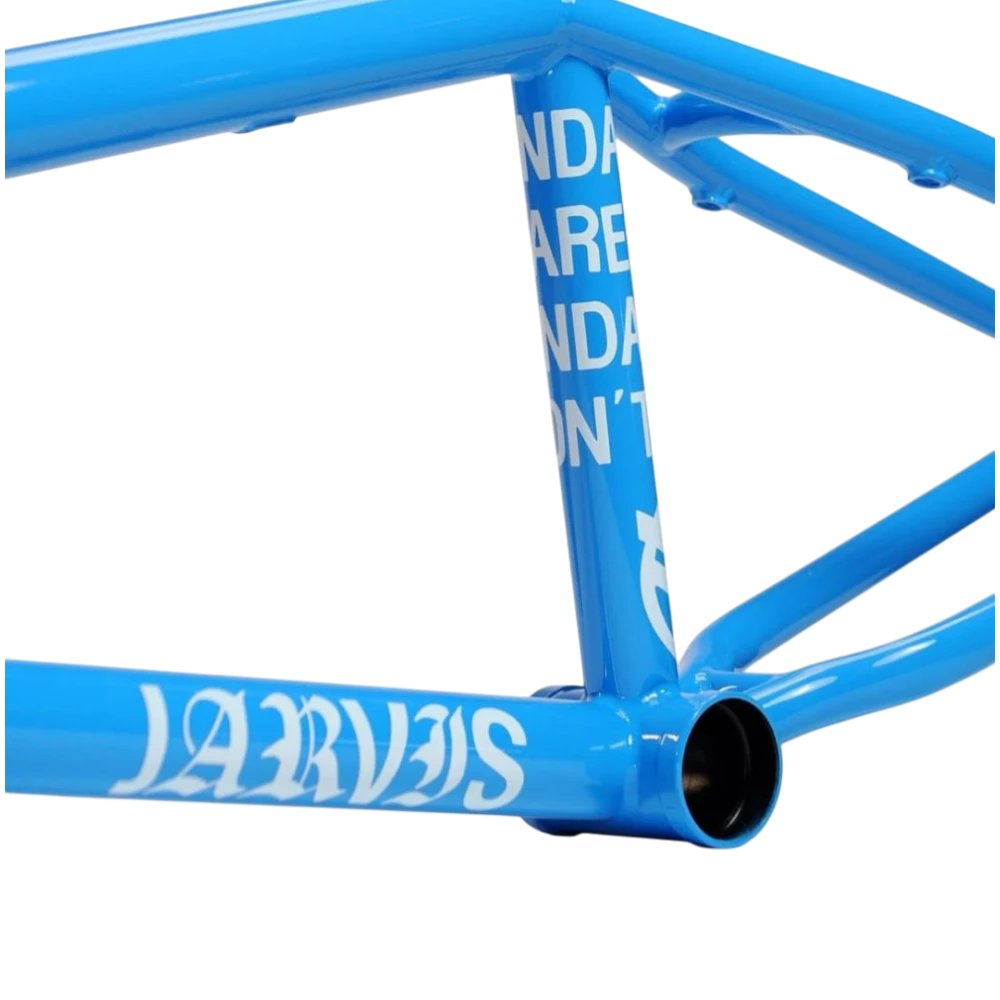

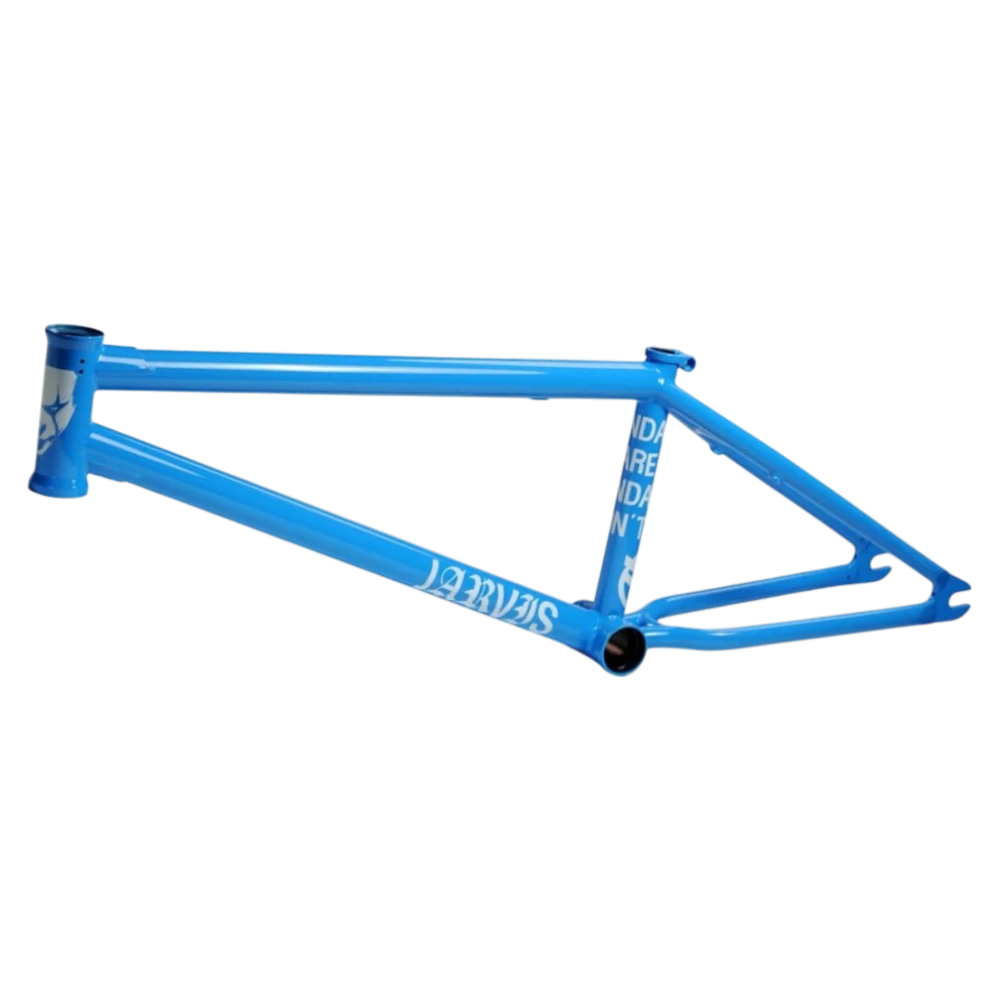

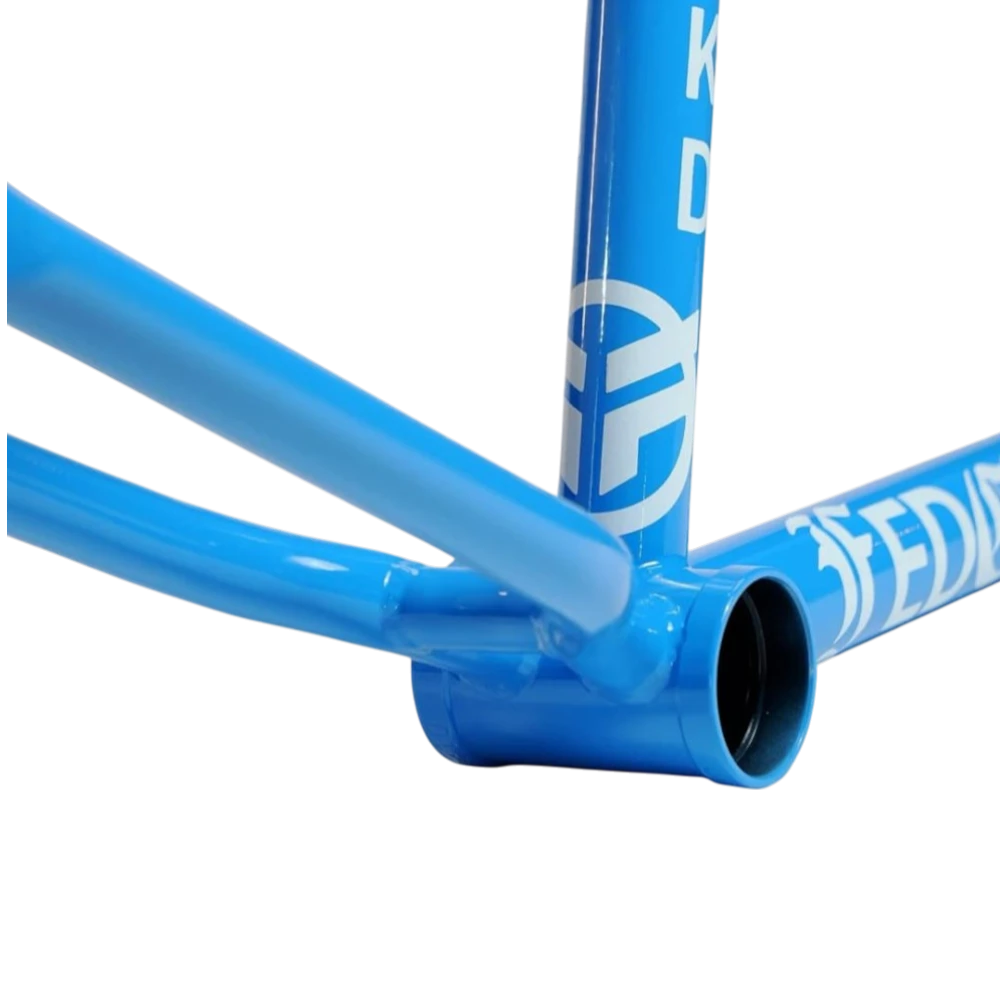

The Jarvis V2 Frame is the result of consistent development in collaboration with Joe Jarvis. The goal was a frame without unnecessary features that rides directly and precisely. To achieve this, the construction was simplified, and the ICS2 wishbone was deliberately omitted. This saves weight and ensures fast, immediate feedback during spins, manuals, and technical lines.

Made from high-quality Sanko 4130 CrMo, the frame offers the necessary stability for hard street riding. The updated V2 geometry, with a short 13.15-inch rear end and a 75.5-degree head tube angle, ensures agile handling and quick reactions. Integrated chain tensioners, an IC seat clamp, and removable brake mounts guarantee a clean setup. Stamped external gussets reinforce the highly stressed areas and emphasize the functional, minimalist design of this signature frame.

Material: Sanko 4130 CrMo
Signature: Joe Jarvis
Top tube length: 20.5 inches / 21 inches
Head tube angle: 75.5 degrees
Seat tube angle: 71 degrees
Chainstay length: 13.15 inches slammed
Stand-over: 9 inches
Bottom bracket height: 11.7 inches
Headset: Integrated
Gyro Tabs holes: Yes
Brake mounts: Fully removable, not included
Bottom bracket: MID BB
Seat clamp: Integrated, Investment Casting
Dropout: 14 mm, integrated chain tensioners
Weight: approx. 2.50 kg at 21 inch top tube
Color: Black or Blue

1 frame
